Anran F1 Pro Review
Author: admin
Date: October 23 13
In recent weeks I have had the opportunity to try the Anran F1 PRO, the company`s top-of-the-range surveillance camera, which incorporates many functions in a single product: 355°+90° video camera; integrated double light; solar powered. I describe the product and how it works.
Topics of this article:
- Anran F1 PRO Technical sheet
- What`s in the box
- Assembly of the video camera and solar panel
- Video surveillance operation
- Anran F1 PRO Final thoughts and price
Anran F1 PRO Technical sheet
Camera
| Sensor | 1/2.9`` 3Megapixel CMOS |
| Effective Pixels | 2304(H)*1296(V) |
| Shutter | 1/15~1/10,000s |
| Minimum illumination | Color 0.1Lux@F2.0. Black and white 0.01Lux@F2.0 |
| Day/Night Switching | Auto Switching(ICR)/Color/B&W |
| Wide Dynamic Digital | Wide Dynamic |
| Lens | 3.6mm,95° |
Video and audio
| Video compression standard | H.264 |
| Bitrate | 32Kbps~2Mbps |
| Frame rate | 1~25fps |
| Audio input/output | Bulit-in mic/speaker |
| Alarm trigger Intelligent detection | PIR trigger, sound and light alarm |
| Interface Protocol | Private |
| Wireless standard | 2.4G WIFI(IEEE 802.11b/g/n) |
| Mobile system | iOS 8 or later, Android 4.2 or later |
| Video security | User authentication, software encryption |
Battery & PIR
| Battery | 10000mAh rechargeable Li-ion battery (2 x 21700) |
| Standby time | 12 months |
| Operating time | 4 months (20 wake-ups per day during daytime only) |
| PIR detection | Up to 8m, 100° |
Universal
| Operating temperature | -10℃~50℃,humidity less than 90% (no condensation) |
| Power supply | DC 5V2A |
| PTZ | Horizontal: 0°~350°; Vertical: 0°~90° |
| IP rating | IP65 |
| Storage | SD card storage (up to 128G), support cloud storage |
What`s in the box
The Anran F1 PRO video camera arrives well packaged with everything needed for first use and assembly, however the micro SD is missing which you will have to purchase separately if you want to use the storage functions.
- Anran F1 PRO video camera
- USB-C charging cable
- Solar Panel
- Camera fixing base + plugs with screws
- Solar panel fixing base + plugs with screws
- Templates for fixing the bases
- Multilingual manual
Assembly of the video camera and solar panel
Assembly of the Anran F1 PRO is very simple thanks to the two templates included in the package which will help us with drilling.
Once we have chosen the most suitable place for our video camera , we will just need to fix the base to the wall or to the ceiling and then fix the video camera to this base.

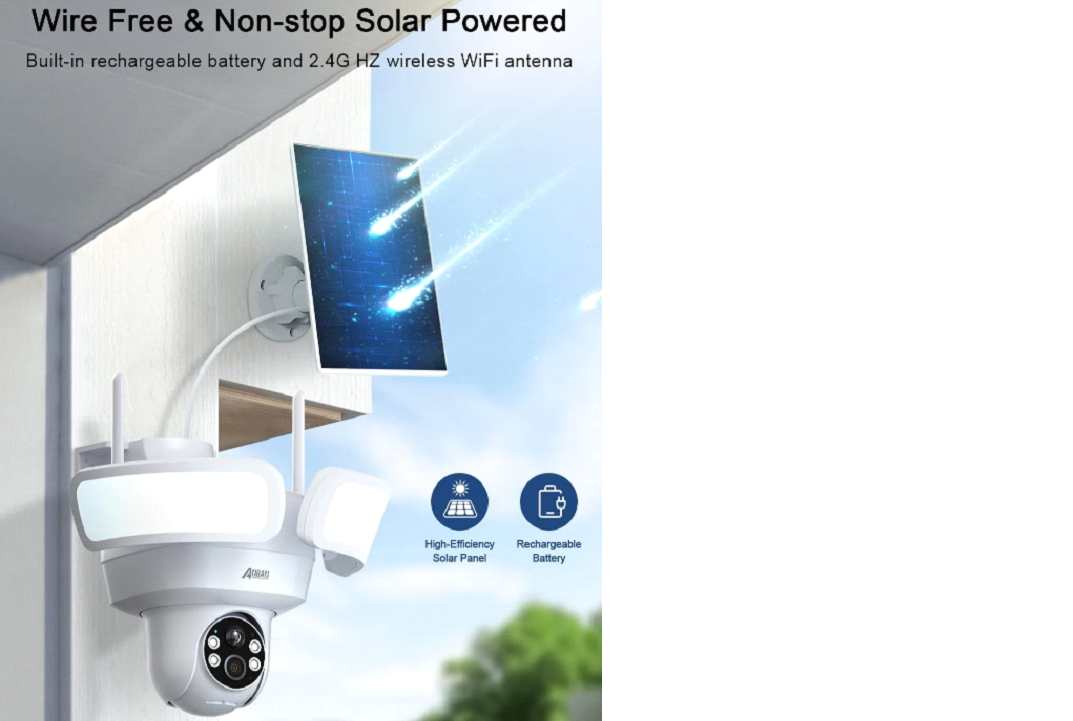

Same thing for the solar panel , which thanks to the 2.5m cable allows us to choose a position further away from that of the video camera and more suitable for receiving sunlight.
The camera can also be recharged via USB-C (or even powered by a power bank) I therefore recommend that you carry out an initial charge directly from your smartphone charger before proceeding with pairing it with the Anran app .
Pairing is very easy, just follow the instructions on the application and show the QR code to the camera.
Video surveillance operation
The Anran F1 PRO is an all-in-one product that incorporates many functions in one product.
Anran F1 PRO is first and foremost a surveillance camera that allows you to monitor not only the environment at 350° horizontally, but also 90° vertically, offering virtually total coverage of the area in which it is installed.
The 2k quality allows you to obtain clear images both day and night thanks to the IR illuminator which returns clear images even in low light conditions. If this is not enough, the PIR sensor is able to detect and activate the large integrated and adjustable LED lights to illuminate the environment in which it is installed.
We have many options available to manage alarms in the event of the presence of people , who will record a small video on the cloud or on the SD memory (supported up to 128GB). The camera will also send a notification to our smartphone allowing us to check the situation in real time and also interact with the person via two-way audio .
We can customize the alarm function according to our needs, selecting the sensitivity, the maximum recording time, the minimum interval between notifications, the time (day/night) and it is even possible to select the visible area in which to detect the intruders .
To deter any threats, there is also a medium-loud siren that sounds when people are detected, but can be turned off if you don`t need it.
In truth, the detection functions can be extended enormously thanks to AI artificial intelligence which is able to recognize animals, cars, parcels and people but requires a subscription to the service at a cost of €1.39/month.
Anran F1 PRO Final thoughts and price
The Anran F1 PRO is a complete and feature-rich video camera that really surprised me with its video quality and ease of use.
Thanks to the solar panel and the enormous autonomy, I was finally able to cover an area of the house that had always remained uncovered due to a lack of available power . The WiFi signal is received at 67% despite the 3 walls and the 10 meters that separate them.
The Anran F1 PRO is also compatible with Alexa so throughout the house I can see and talk to anyone who approaches the camera, be it the postman or an attacker. The proposed price is $169.99 using the discount code 5U5EP1B0I58E on THIS PAGE A figure that may seem high compared to traditional cameras, but this product incorporates 3 products in one ( surveillance camera + solar panel + automatic light ) that more than justify the price.
